product name:

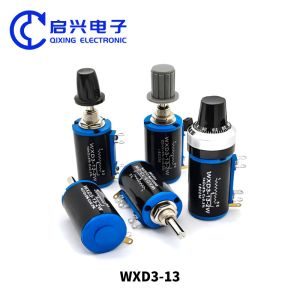

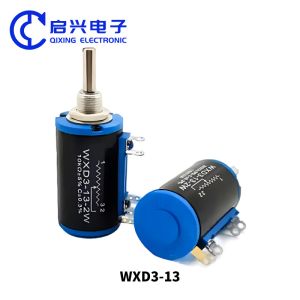

WXD3 WXD3-13 2W Multi-Turn Wirewound Potentiometer Rotary Switch 10 turns 5k 10k 100k

product description:

Precision multi-line wire winding power WXD3-13-2W, 20 boxes of sliding barrier, a shaft diameter 4mm axis 20mm outer diameter 20mm, 2W, 10 laps, resistance value of 100 ohm, 220 ohm, 330 Euros. 470 ohm, 1K, 2K, 2.3K, 3.4K, 7.5K, 10K, 22K, 33K, 47K

Product Features:

	High structure structure
	Excellent craftsmanship, smooth movement, reliable and stable performance, wide range of insulation and dustproof wiring ports, high protection levels

Excellent accessories fine work quality
Use copper silver contact material to improve strong conductivity, more member sensitivity, and make the product's carrying capacity stronger, just to ensure the quality

	Excellent material conductivity is excellent
	Corrosion -resistant material, high mechanical strength, long service life, reliable performance, enough to resist bad weather

Product size:

Specification parameters:

Electrical characteristics
	Resistance Range	100Ω to 100kΩ
	Tolerance of Total Resistance	± 5%
	Angle of Rotation	3600 ± 20 ℃ (10 lap)
	Voltage Rating	160V
	Torque	3.5-100m. N.m
	Powering Rating	2W (85 ° C) 0w (125 ° C)
	Load Life	10,000 weeks

Environmental characteristics
Environmental Temperature	-55 ~+100 ℃;
Relative Temperature	When the temperature is+40 ° C, up to 98%;
Atmospheric Pressure	107 ~ 4.4kPa;
Vibration	The frequency of vibration is 10 ~ 500Hz, and the acceleration is 49m/s2;
Shock	The frequency is 40 ~ 80 times/minute, and the acceleration is 147m/s2;
Centrifugal Acceleration	147m/s2
Electric Strength	750V (50Hz AC valid value) 1 minute, no penetration, flying arc phenomenon
Insulation Resistance	Before the tide m 200MΩ, after the tide ≧ 20MΩ
Rotation Torque	50-500GF.CM, the torque ratio is 1: 3
Invariableness	40 ± 2 ℃, the relative temperature of 93 ± 3%, after 96 hours, △ R/R does not exceed ± 1%
Electrical load	Electrical loadAfter 48 hours of rated power load, △ R/R does not exceed ± 1%

Physical characteristics
	Package Diameter(mm)	twenty two
	Shape	Circular
	Sealable	IP40
	Shaft	Metal
	Shaft Type	L16, L20, L25
	Shaft Diameter	4mm
	Element	Line
	Terminal	Welding/side
	Taper-Linear	X -ray type
	Linearity	1%
	Standard Package	20 per box

application area:​

WXD3-13-2W 10K European Multi-Circle Wind Power Power Sliding Voltizer is suitable for telecommunications, electrical, electronic instruments and equipment, as precise adjustment of DC or low-frequency voltage and current. The characteristics of stability
