product name:
bakelite knob mf-b01 mf-b02 mf-b03 hexagonal potentiometer band
switch inner hole 6mm
product description:

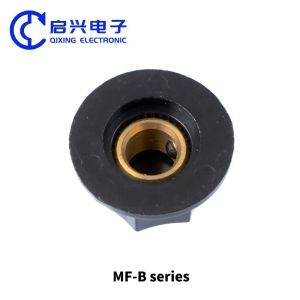

Name: Bakelite Knob
Model: MF-B01 MF-B02 MF-B03
Material: Rubber wood copper core
Color: Black
Fixation method: side screw fixation
Aperture: 6mm
Fixed form: fixed with side screws
Main use: Suitable for potentiometers, encoders, and band switches
with a shaft diameter of 6mm.
Packaging: 50 pieces/box
Product Features:
The advantages of this knob include:
1. Moderate height: The knob has a moderate height, which is
convenient for users to adjust. It will not be too high and
inconvenient to adjust, nor too low and unstable to rotate.
2. Plastic material: The knob is made of plastic material, which
has certain durability and impact resistance, and can adapt to
various environments and usage scenarios.
3. Anti slip design: The edge of the knob adopts an anti slip
design, which can provide better grip and stability even when the
hands are sweaty or wet during the adjustment process.
4. Multifunctional: The knob can be used for various devices, such
as speakers, televisions, etc., and has high versatility.
5. Easy installation: The knob adopts a standard screw installation
method, making it convenient for users to install and replace.

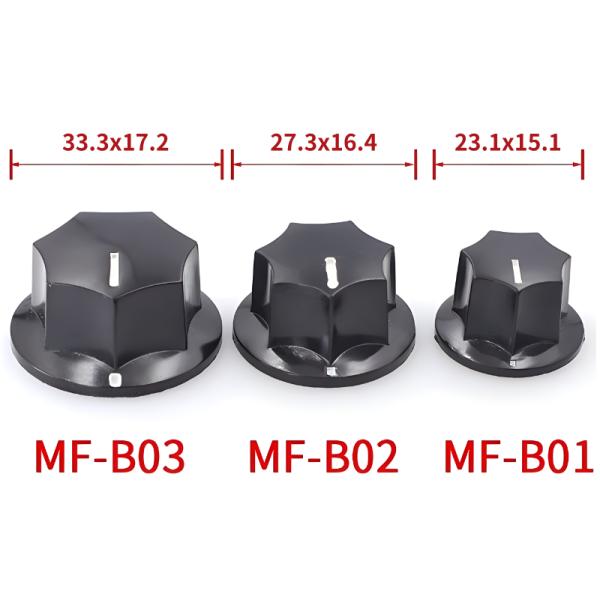

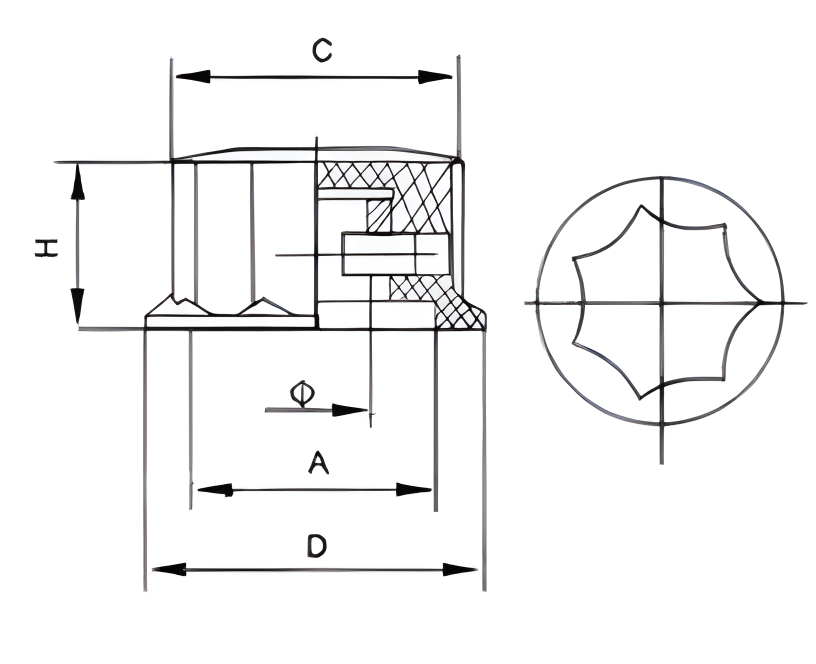

Product size:
type | D | A | H | φ |
| MF-B01 | 23.1 | 14.6 | 15.1 | 6.0 |
| MF-BO2 | 27.3 | 18.3 | 16.4 | 6.0 |
| MF-B03 | 33.3 | 21.4 | 17.2 | 6.0 |
Note: The above is manual measurement data with errors and is for
reference only.
Specification parameters:
| Origin | China |
| Product Name | MF-B series potentiometer knob, rubber wood knob |
| model | MF-B01 MF-B02 MF-B03 |
| material quality | Rubber wood copper core |
| Inner hole diameter | 6mm |
| Knob color | black |
| size | MF-B01:23.1×15.1MM
MF-B02:27.3×16.4MM
MF-B03:33.3×17.2MM |
| Fixed form | Side screw fixation |
| packing | 50 pieces/box |
application area:
The potentiometer knob MF-b01 MFB02 MFB03 is suitable for
potentiometers RV24YN, RV30YN, WX112, WX050, WX111, WX030, WTH-1,
WH118, WX110, WX010, etc

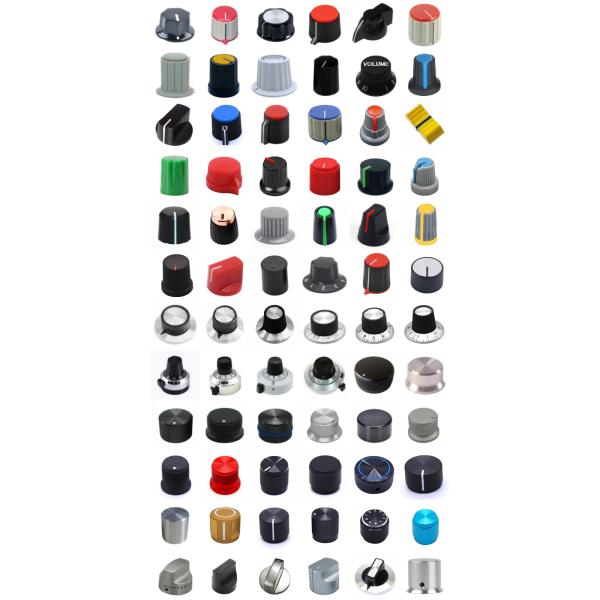

product catalog:
