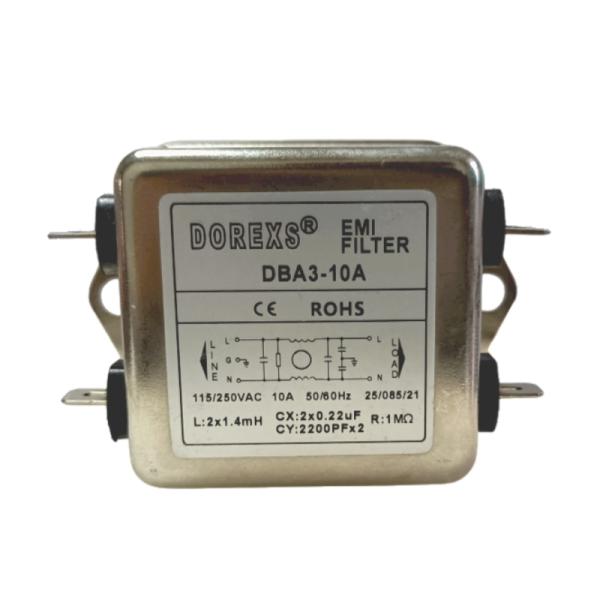

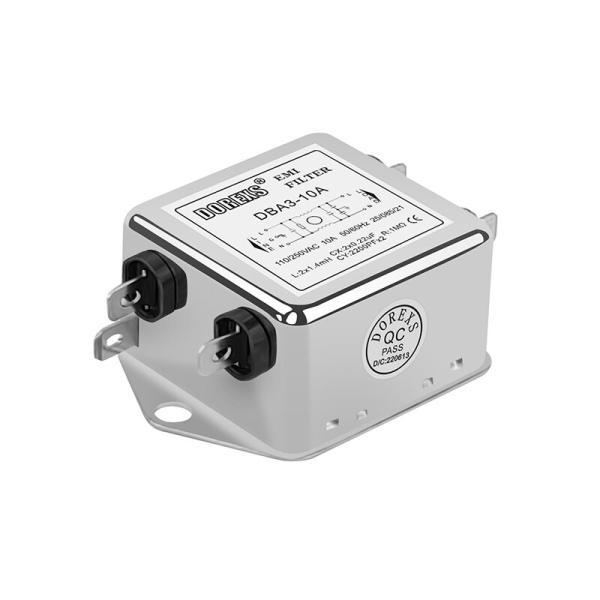

DBA3-Insert EMI filter 220V 1A 3A 6A 10A Single-Phase Universal Series Power Filter

PRODUCT NAME:

DBA3 Power Line Single Phase emi filter 40a for industrial emc filter manufacturer with certificate

PRODUCT INTRODUCTION:

DBA3 series EMI power line noise filters are made of high-quality manganese-zinc ferrite magnetic rings and capacitors, with first-class workmanship quality and excellent performance.

There are two connection methods: bolt connection; standard 6.3*0.8mm250 plug-in interface; material parameters can be customized.

It is widely used in various automated robots, LED lighting systems, testing equipment, medical equipment, fire protection systems, urban security monitoring systems, audio equipment and other equipment in complex electromagnetic interference environments. Filter with good suppression of common mode and differential mode interference. The product is simple in design but has better performance, easy connection, easy use and low price.

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Rated current: 1A-10A
■Basic type, favorable price, low cost
■Standard 6.3*0.8 blade terminal or bolt connection, simple installation, convenient and fast

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Terminal		Product internal circuit diagram	Safety certification	Remark
			enter	output
DBA3-1A	1A	<0.5mA	insert	insert		CUL, CE CQC, ROHS	Support parameter customization
DBA3-3A	3A	<0.5mA	insert	insert
DBA3-6A	6A	<0.5mA	insert	insert
DBA3-10A	10A	<0.5mA	insert	insert
DBA3-20A	20A	<0.5mA	insert	insert

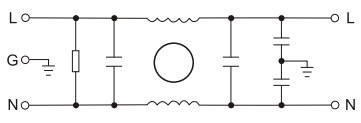

PRODUCT INTERNAL CIRCUIT DIAGRAM

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

DBA3-6A/DBA3-10A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​
