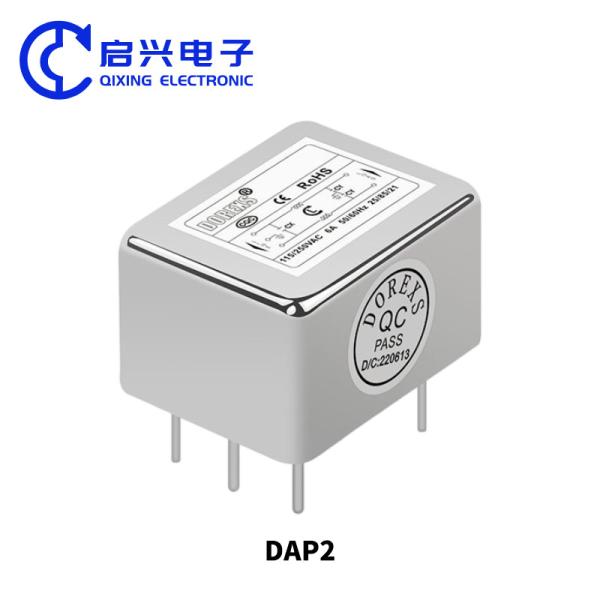

DAP2 low pass power supply filter 1A 6A 3A 10A PCB mounting single phase EMI EMC power filter

product name:

DAP2 1A 3A 6A 10A PCB mounting single phase EMI EMC power filter emi filters pcb mount noise filter for amplifier

Product introduction:

The DAP2 series EMI power line noise filter adopts a pin interface design, with a rated current of 1A -10A. It is characterized by small size and easy installation, designed specifically for PCB board assembly, customizable, strong anti-interference ability, stable performance, and wide range of applications

PRODUCT FEATURES

■Single-phase AC 220V EMI filter/noise filter (DC universal)
■Rated current: 1A---10A
■PIN interface design
■EMI filter has a good suppression effect on common mode and differential mode interference

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Product internal circuit diagram	Safety certification	Remark
DAP2-1A	1A	<0.8mA		CUL, CE CQC, ROHS	Support parameter customization
DAP2-3A	3A	<0.8mA
DAP2-6A	6A	<0.8mA
DAP2-10A	10A	<0.8mA

PRODUCT INTERNAL CIRCUIT DIAGRAM

PRODUCT SIZE

INSERTION LOSS

————共模(Common Mode)----------差模(Differential Mode)

DAP2-1A DAP2-3A

DAP2-6A DAP2-10A

PRODUCTION PACKAGING

APPLICATION AREA

Application fields: electronic and electrical equipment, medical equipment, single-phase power supply, switch mode power supply, small and medium-sized machines, and household equipment

PRODUCT PHOTOS

PRODUCT CATALOG

AUTHENTICATION

MANUFACTURING

EXHIBITION

COMPANY PROFILE

Sichuan Qixing Electronics Co., Ltd. is a professional company engaged in the development, production, and sales of potentiometer, resistor, filter, potentiometer knob, band switch, and capacitor products. We were established in 2005 and have many years of production experience. Our company headquarters is located in Wenjiang District, Chengdu City, Sichuan Province, China.

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
