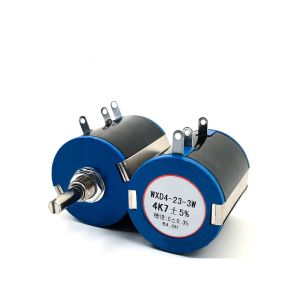

    Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers

    Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers
    • Buy cheap WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer from wholesalers

    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer

    Ask Lasest Price
    Brand Name : BONENS
    Model Number : WXD4-23-3W
    Price : 5.5
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer

    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23-3W 10K European Multi-Circle Wind Power Power Sliding Voltizer is suitable for telecommunications, electrical, electronic instruments and equipment, as precise adjustment of DC or low-frequency voltage and current. The characteristics of stability
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 wirewound potentiometer
    Stock Value: 1K 2K2 4.7K 10K 22K 47K 100K Shaft diameter: 6mm Shaft length: 25mm Outer diameter: 40mm

    Power: 3w Linear precision: + 0.1% to + 0.3% The resistance tolerance: + 2% to + 5% Rated voltage: 200 v Ten turns Life: 15000 turns Rated resistance range:330Ω~500KΩ Resistance tolerance:±2% ±5% ±10% Rated power:3W Maximum working voltage:250V Mechanical endurance :10000(cycles)

    WXD4-23 wirewound potentiometer
    Linearity:±0.1% ±0.25% ±0.5% ±1% Mechanical rotating angle:3600° Length of shaft :L=25mm

    Ambient temperature: - 50 ~ + 100 ℃

    The relative temperature: when the temperature is + 40 ℃, 98%

    The atmospheric pressure:107-47 kpa
    Vibration, vibration frequency for 10 ~ 500 hz, the acceleration of 98 m/s2 Collision: frequency of 40 ~ 80 times/min, the acceleration of 147 m/s2
    Centrifugal: acceleration of 98 m/s2.
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    Product parameters
    Model Number
    WXD4-23
    Type
    Rotary Potentiometer
    Resistance
    100~100K
    Resistance Tolerance
    ±2%~±5%
    Rated Power
    3W
    Max. Operating Voltage
    500V
    Operating Temperature
    55℃~+125℃
    Tolerance
    ±10%
    Diameter
    22.2mm
    SHAFT DIAMETER
    6mm
    Certificate
    TUV RoHs ISO
    Product size
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer
    WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer

    Q1: How can I place order?

    A: You can contact us by email about your order details, or place order on line.
    Q2: How can I pay you?
    A: After you confirm our PI, we will request you to pay. T/Tand Paypal, Western Union are the most usual ways we are using.
    Q3:What’s the order procedure?
    A: First we discuss order details, production details by email or TM. Then we issue you an Pl for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare
    the shipment for you.
    Q4: How do you take care when your clients received defective products?
    A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
    Q5: How do you check all the goods in the production line?
    A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
